Name: Storm Drain Structure

Display Field: GISID

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains storm drain structures used for Public Works GIS/SAP Work Management System. The layer is created and maintained to ensure that infrastructure is represented in the appropriate spatial context with sufficient attribution to determine structural material, sizes, and configurations.</SPAN></P></DIV></DIV></DIV>

Service Item Id: dcee747168fa4fdf9001a9f653e39535

Copyright Text: City of San Diego, Stormwater Department

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: true

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6244743.7594046295
YMin: 1777337.020770058
XMax: 6352868.861395463
YMax: 1986073.2358427346
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• DRAIN ( type: esriFieldTypeInteger, alias: Drain Structure ID )
• GISID ( type: esriFieldTypeString, alias: GIS ID, length: 10 )
• EQPID ( type: esriFieldTypeString, alias: Equipment ID, length: 9 )
• SAPID ( type: esriFieldTypeString, alias: SAP ID, length: 10 )
• CODE ( type: esriFieldTypeString, alias: Structure Type, length: 1 , Coded Values: [C: CAP] , [M: CLEANOUT] , [L: CONNECTOR] , ...13 more... )
• ELEVATION ( type: esriFieldTypeDouble, alias: Ground Surface Elevation )
• INSTALL_YE ( type: esriFieldTypeDate, alias: Installation Date, length: 8 )
• ASBUILT_DATE ( type: esriFieldTypeDate, alias: As-Built Date, length: 8 )
• DRAWING_NO ( type: esriFieldTypeString, alias: As-Built Drawing No, length: 30 )
• EASEMENT_DWG ( type: esriFieldTypeString, alias: Easement Drawing No, length: 30 )
• SUBDIV_DWG ( type: esriFieldTypeString, alias: Subdivision Map Number, length: 30 )
• WORK_ORDER ( type: esriFieldTypeString, alias: Work Order, length: 10 )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 1 , Coded Values: [A: ACTIVE] , [I: INACTIVE] , [W: WARRANTY] , ...5 more... )
• COMMENTS ( type: esriFieldTypeString, alias: Comment, length: 100 )
• OWNER ( type: esriFieldTypeString, alias: Owner, length: 1 , Coded Values: [A: PORT AUTHORITY] , [C: CALTRANS] , [M: MILITARY] , ...5 more... )
• MAINT ( type: esriFieldTypeString, alias: Maintained By, length: 1 , Coded Values: [1: CITY OF SAN DIEGO, STREET DIV] , [2: CITY OF SAN DIEGO, PARK & REC] , [3: CITY OF SAN DIEGO, METRO WASTEWATER] , ...18 more... )
• LOC_DESC ( type: esriFieldTypeString, alias: Location Description, length: 40 )
• WATERSHED ( type: esriFieldTypeSmallInteger, alias: Watershed , Coded Values: [1: MISSION BAY] , [2: PENASQUITOS] , [3: SAN DIEGO BAY] , ...4 more... )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ASM_INST_D ( type: esriFieldTypeString, alias: ASM_INST_D, length: 50 )
• HUNAME ( type: esriFieldTypeString, alias: HUNAME, length: 35 )
• HSANAME ( type: esriFieldTypeString, alias: HSANAME, length: 35 )
• CMNTY_AREA ( type: esriFieldTypeString, alias: COMMUNITY AREA, length: 35 )
• CNCL_DTRCT ( type: esriFieldTypeInteger, alias: COUNCIL DISTRICT )
• IAMFLOC ( type: esriFieldTypeString, alias: IAMFLOC, length: 30 )
• WHERE_INSTALLED ( type: esriFieldTypeString, alias: WHERE_INSTALLED, length: 30 )
• SAPOBJNR ( type: esriFieldTypeString, alias: SAPOBJNR, length: 22 )
• CDCODE ( type: esriFieldTypeSmallInteger, alias: CDCODE , Coded Values: [1: 1] , [2: 2] , [3: 3] , ...7 more... )
• CPCODE ( type: esriFieldTypeSmallInteger, alias: CPCODE , Coded Values: [1: Balboa Park] , [2: Barrio Logan] , [13: Black Mountain Ranch] , ...55 more... )
• MAPNG_STAT_CD ( type: esriFieldTypeString, alias: MAPNG_STAT_CD, length: 2 , Coded Values: [AB: AS BUILT] , [AN: ABANDONED] , [OP: OPERATIONAL] , ...2 more... )
• INST_YR ( type: esriFieldTypeDate, alias: INST_YR, length: 8 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• STENCILED ( type: esriFieldTypeString, alias: Stenciled, length: 30 , Coded Values: [Y: Yes] , [N: No] , [NA: NA] )
• STENCIL_TYPE ( type: esriFieldTypeString, alias: Stencil Type, length: 30 , Coded Values: [Paint: Paint] , [Concrete: Concrete] , [Thermoplastic: Thermoplastic] )
• OWN_VERIFIED ( type: esriFieldTypeString, alias: Ownership Verified, length: 30 )
• STORM_ID ( type: esriFieldTypeSmallInteger, alias: STORM_ID , Coded Values: [1: Storm Area 1] , [2: Storm Area 2] , [3: Storm Area 3] , ...10 more... )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

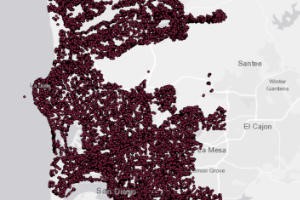

  Iteminfo   Thumbnail   Metadata
